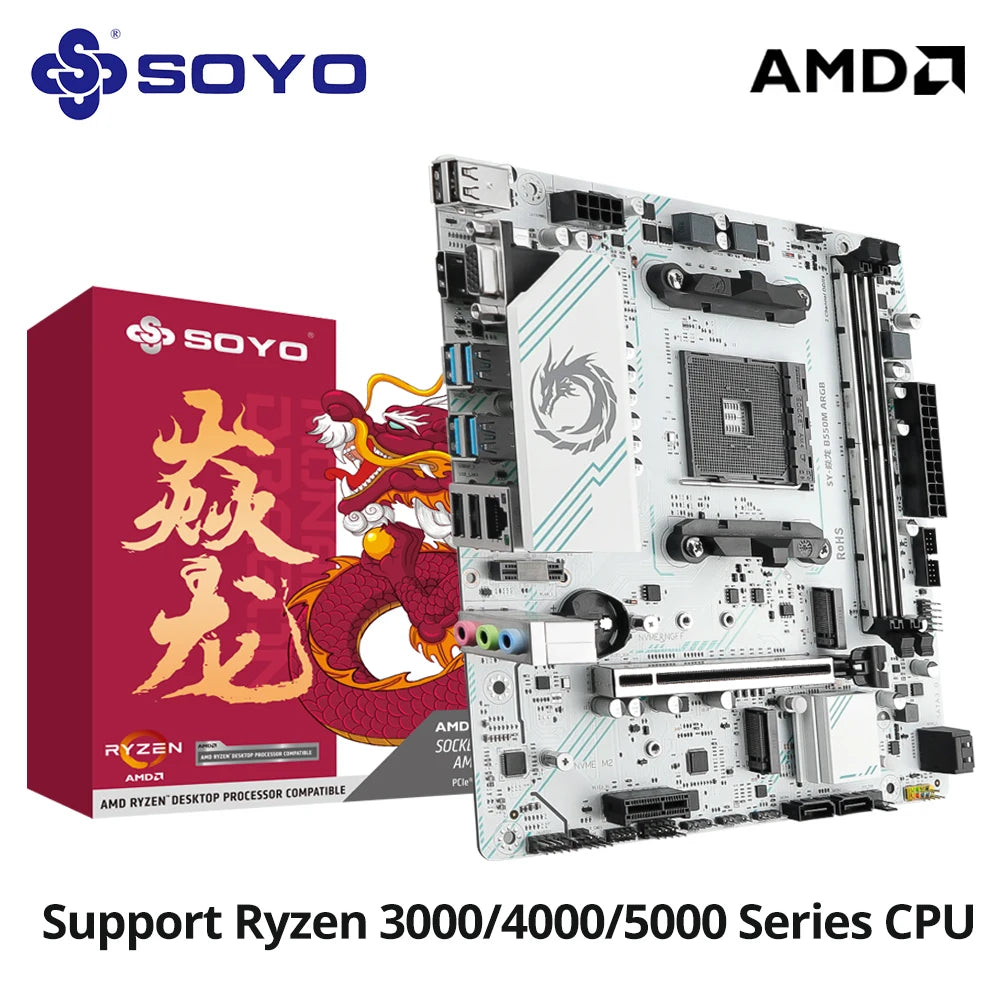

SOYO World Premiere AMD B550M Gaming Motherboard USB3.2 PCIE3.0 M.2 NVME Dual Channel DDR4 AM4 Socket supports Ryzen 5700X CPU
SOYO World Premiere AMD B550M Gaming Motherboard USB3.2 PCIE3.0 M.2 NVME Dual Channel DDR4 AM4 Socket supports Ryzen 5700X CPU
Couldn't load pickup availability
SPECIFICATIONS
Application: Desktop

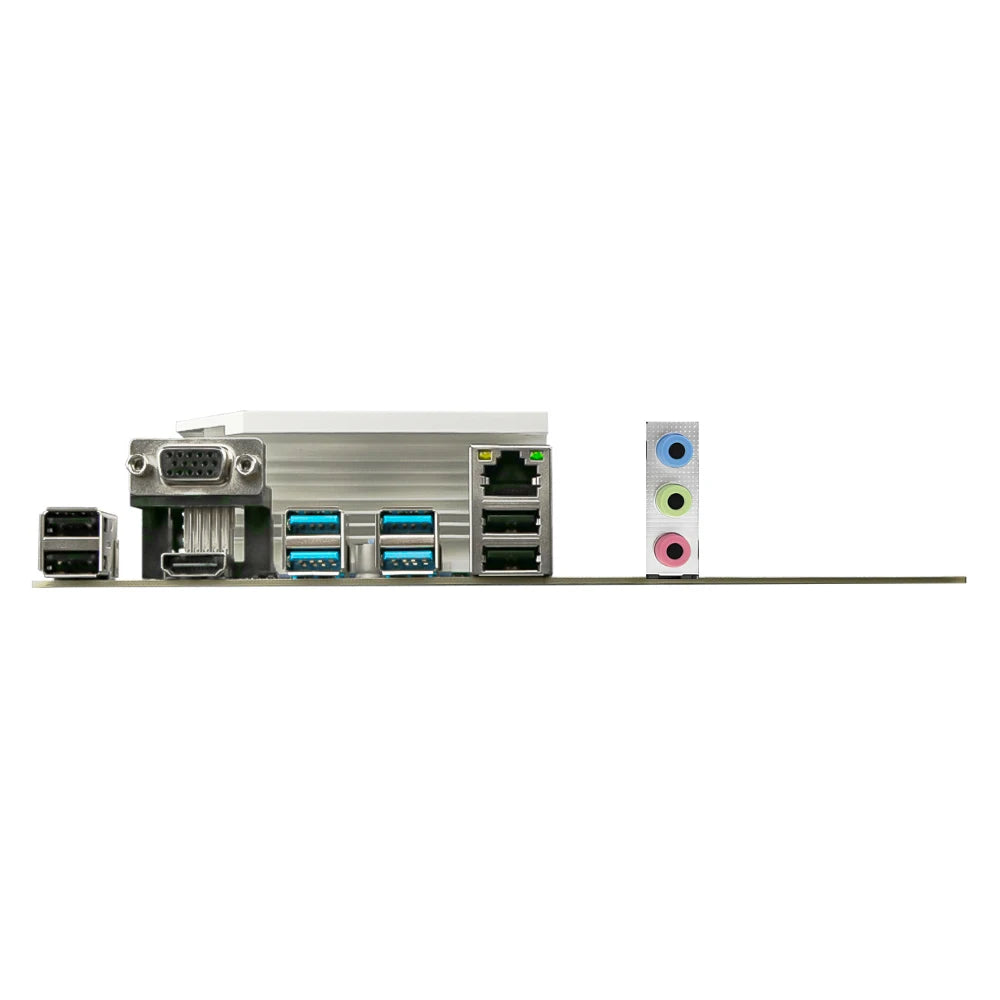

Back I/O Ports: 1x RJ45,VGA (D-Sub),3 x Audio Jacks,4x USB 3.2/3.1 Gen 2,4 x USB 2.0,HDMI 2.0
Battery Included: No
Brand Name: SOYO
Chipset: AMD B550
Chipset Manufacturer: AMD
Choice: yes
Form Factor: Micro-ATX
Hign-concerned Chemical: None
Max LAN Speed: 1000Mbps
Maximum Ram Capacity: 64 GB
Memory channel: Double
Number Of Memory Slots: 2
Number of M.2: 2
Number of PCI: 3
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of SATA Ports: 4
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),Chassis(SYS) Fan Connector(s),RGB Header,8-pin +12V Power Connector
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 4.0
Package: Yes
Ports: PCI-Express X1
Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 3000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3
RAID Supported: Yes
SATA RAID: 0
Socket Type: AM4
Special Features: RGB,Cooling Armor
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR4
Support USB Type: USB 2.0,USB 3.2 Gen1
Supports M.2 SSD: 2242,2280
Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Video Production,Scientific Computing
With CPU: No

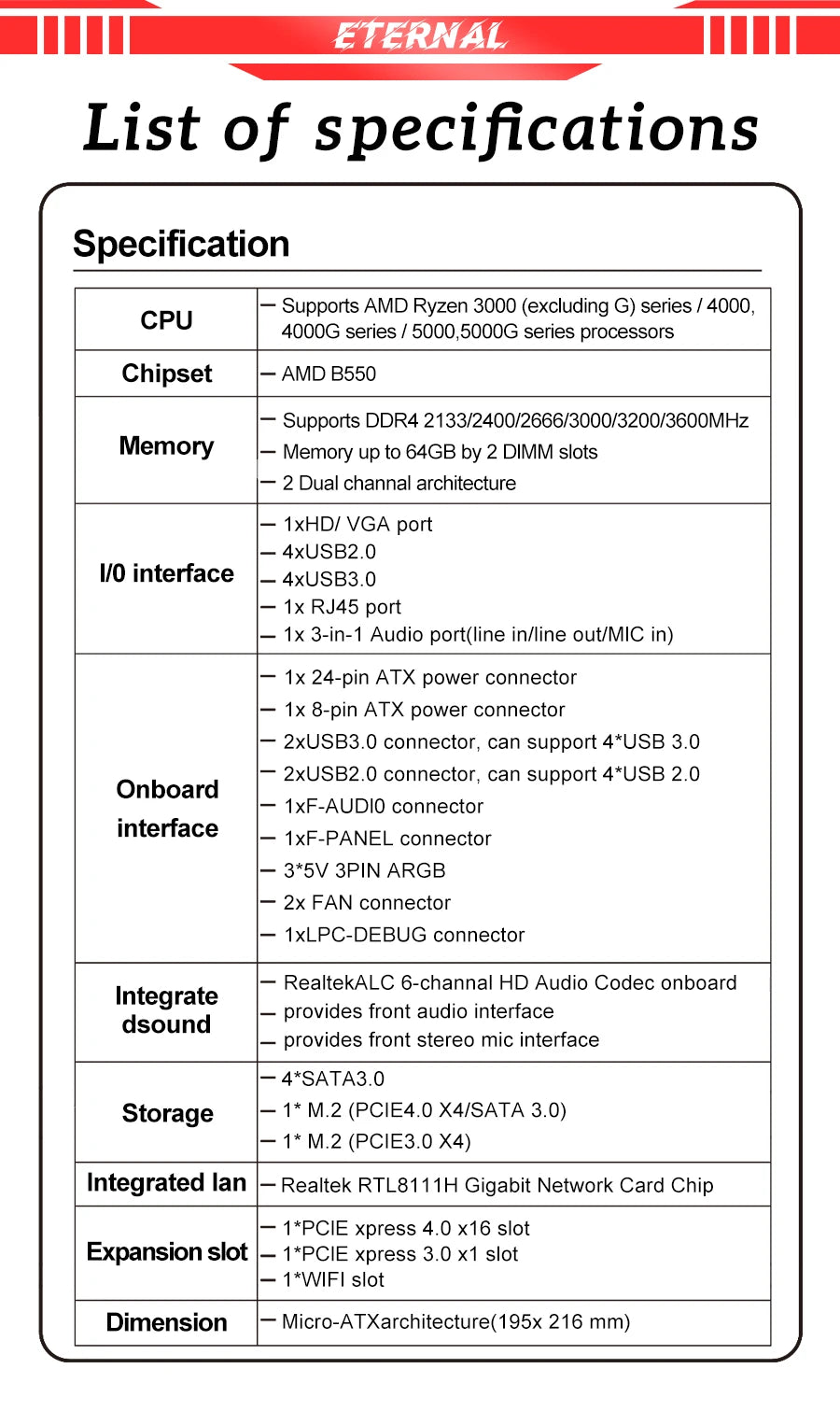

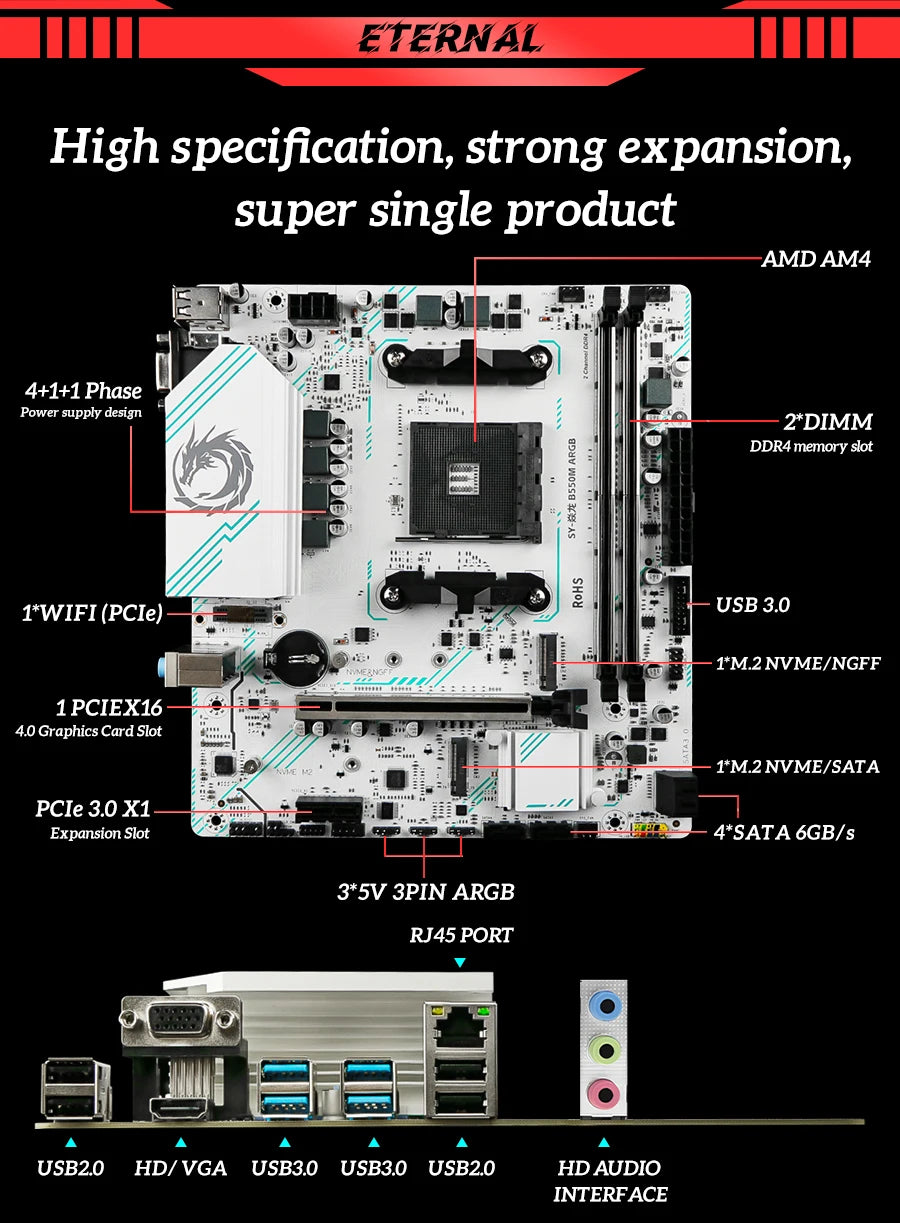

Specification

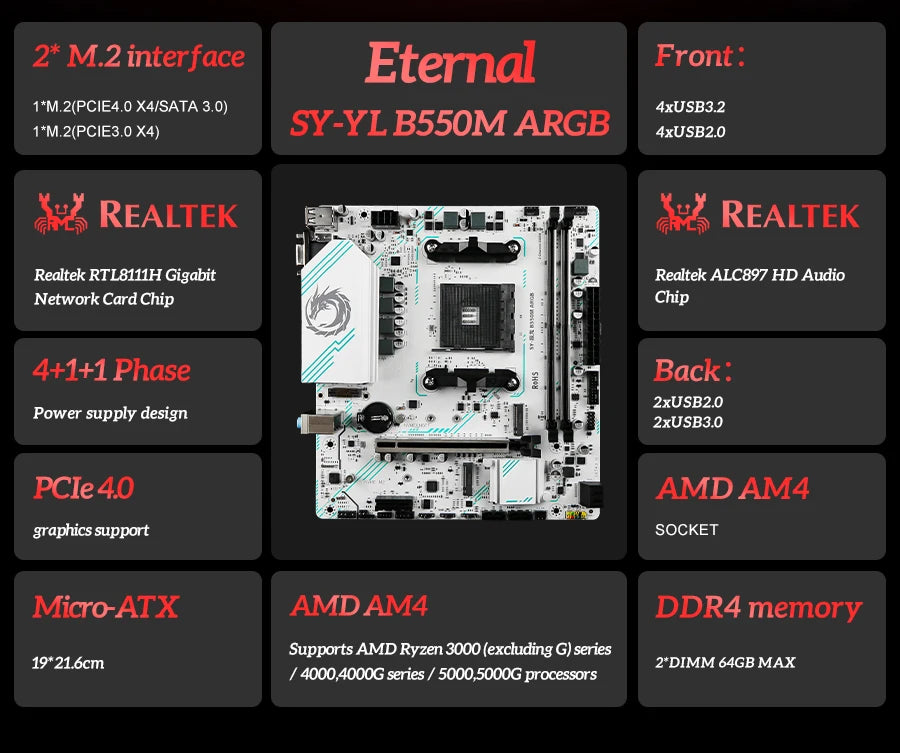

Motherboard chip: AMD B550
CPU: Support AMD Ryzen 3000 (excluding G) series/4000, 4000G series/5000, 5000G series processors

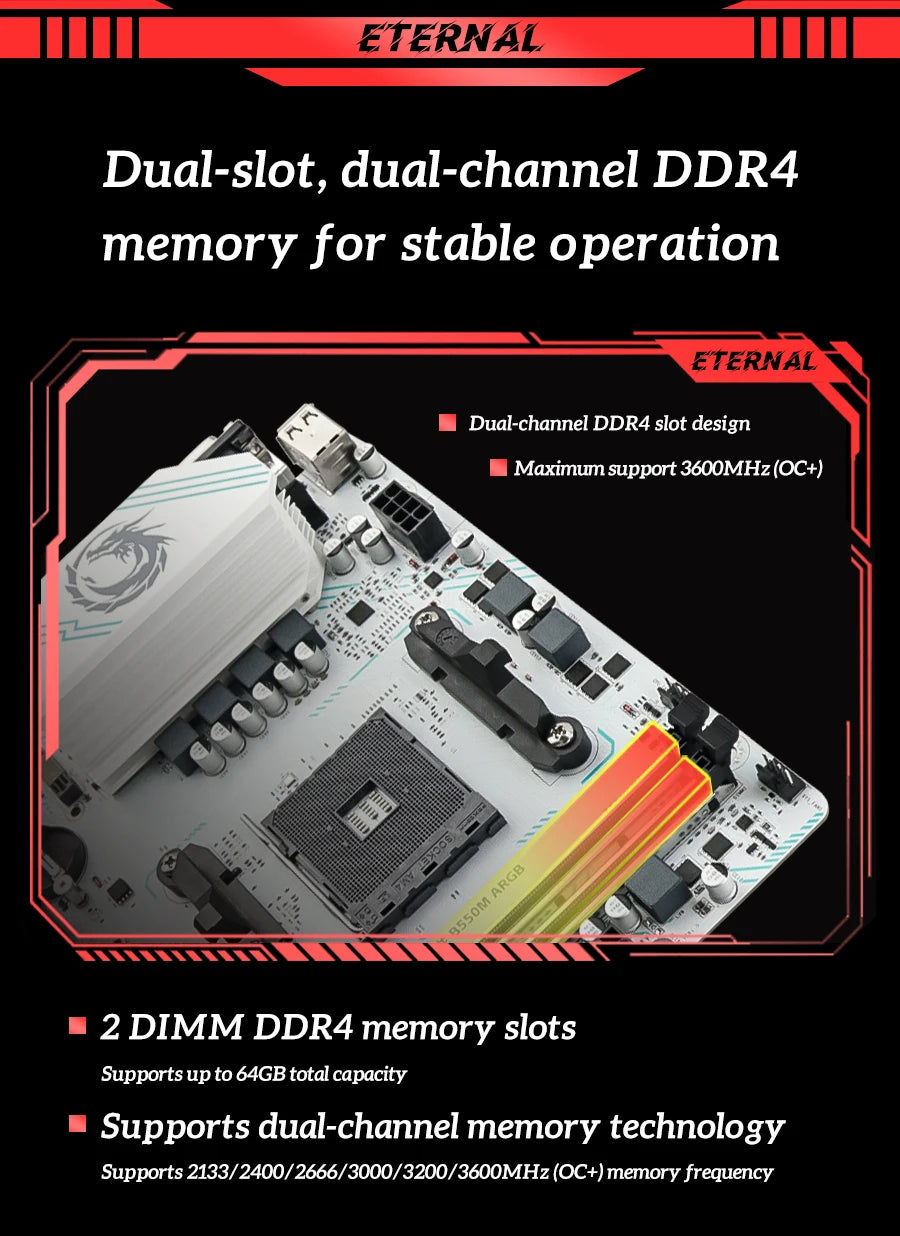

Memory: DDR4*2 dual channel; support 2133/2400/2666/3000/3200/3600MHz (OC+), support XMP, maximum support 64G (32G*2)

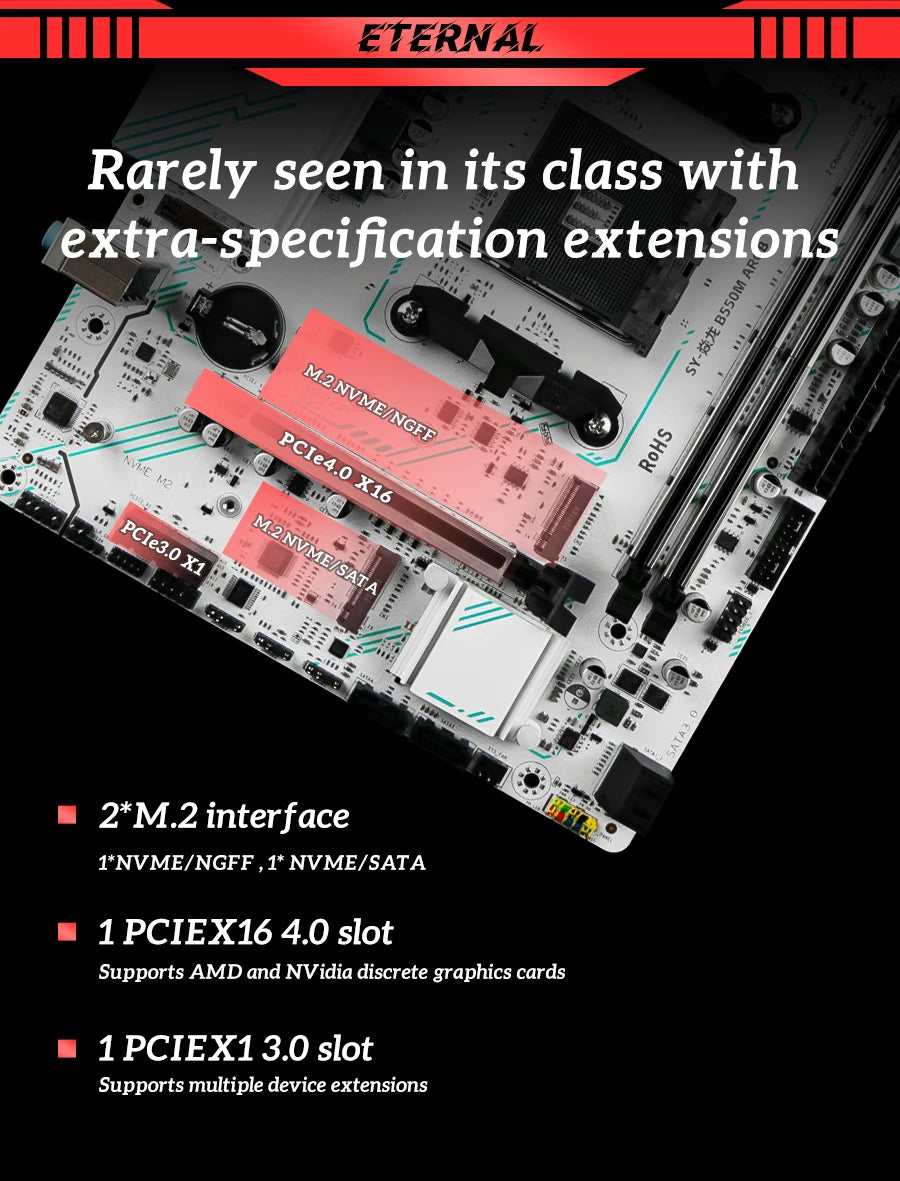

Storage: 2* M.2 slot (CN2: PCIE4.0 X4/SATA 3.0) (CN3: PCIE3.0 X4); 4*SATA 3.0 interface
Display interface: 1*HDMI 2.0 interface, 1*VGA interface
Network: 1*RJ45 interface
Network card chip: Realtek RTL8111H Gigabit network card chip
PCIE slot: 1*PCIE X16 slot (PCIE4.0 X16) ; 1*PCIE X1 slot (PCIE3.0 X1); 1*WIFI slot (PCIe protocol)
Audio: 1*Line out; 1*MIC In; 1*Line In; 1*F_Audio built-in pin
Audio chip: Realtek ALC897 high-definition audio chip
IO interface: 4*USB3.2 GEN1 (5Gbps), 4*USB2.0
Built-in pins: 1 set of USB2.0 pins (can be expanded to 2 USB2.0 ports); 1 set of USB3.0 pins (can be expanded to 2 USB3.0 ports); 5Gbps

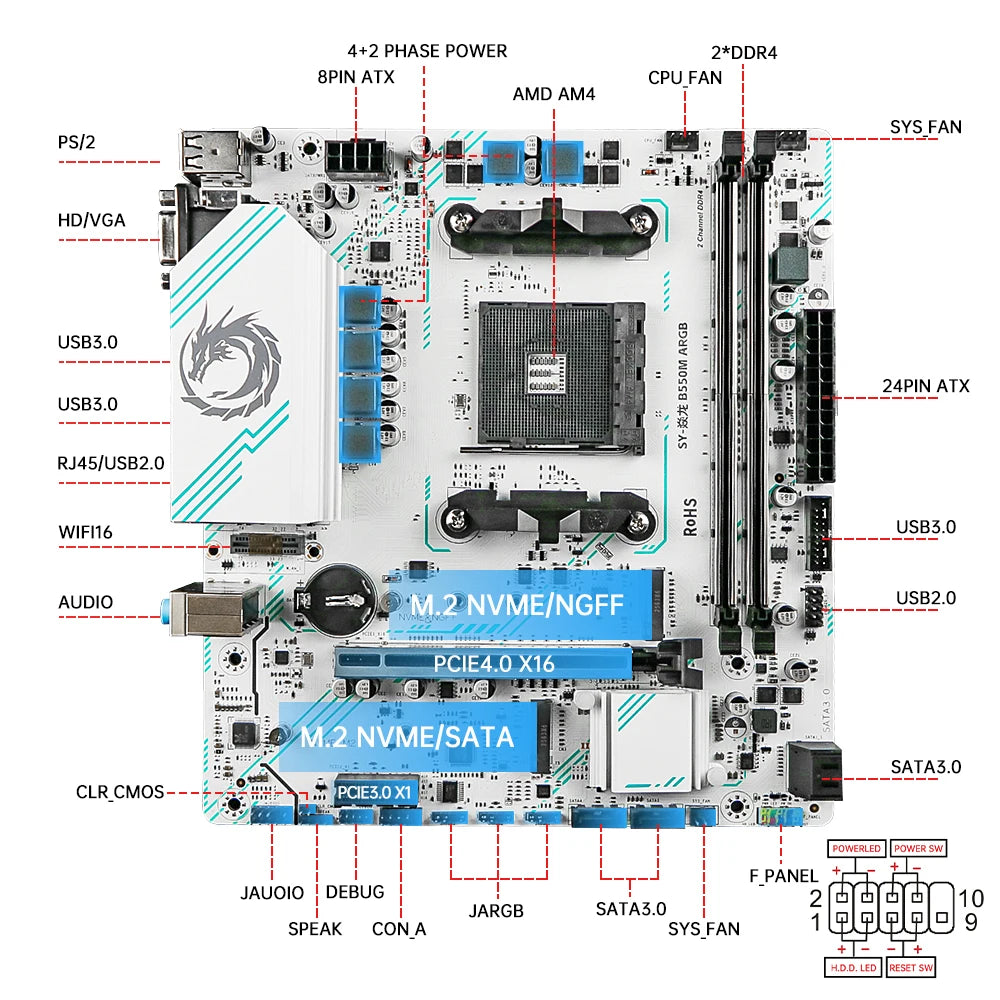

Function pins: 1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin+ 1*3Pin SYS fan; 1*4Pin Speak pin; 2*5Pin COM pin; 2*5Pin Debug pin; 3*5V 3PIN ARGB pin
Power input: 24Pin+8Pin ATX power socket
Others 1*CLR CMOS 2PIN pin
Note:
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can't, we don't recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.
# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
